KEYSTONE MODUL TOLLESS RJ45 CAT.6 FTP LANBERG

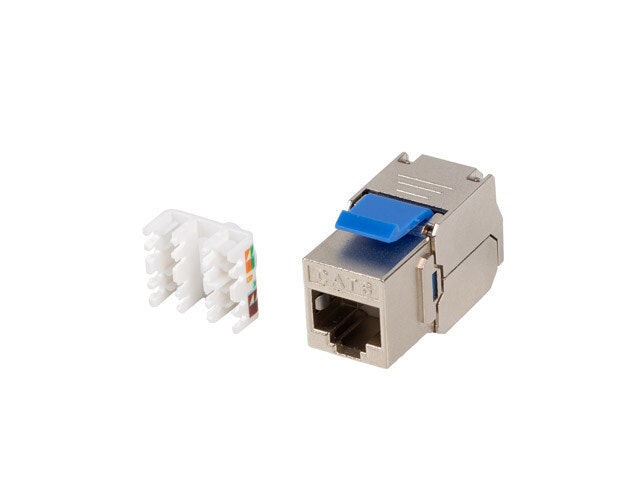

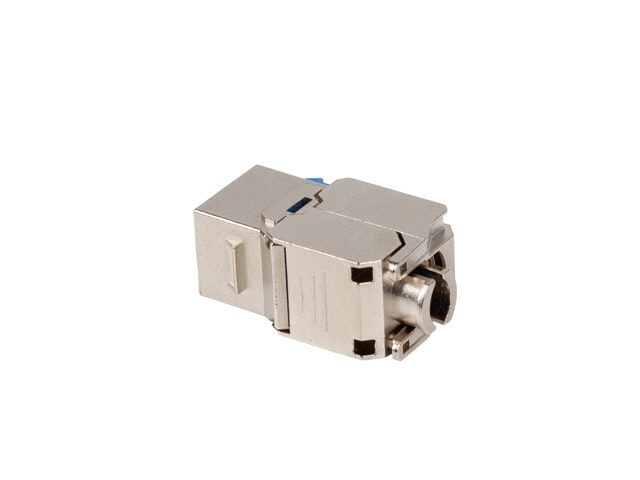

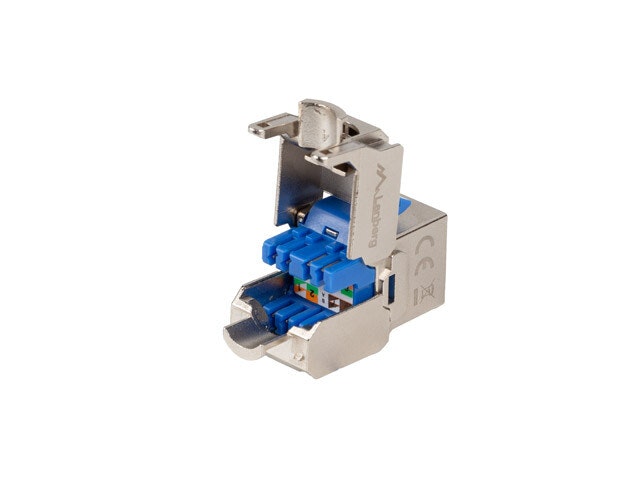

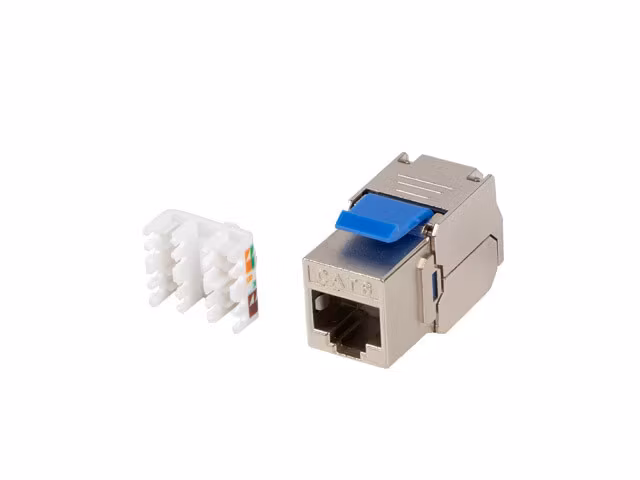

Keystone RJ45 CAT.6 FTP receptacle is a unique solution that can be freely installed in various keystone adapters with standard dimensions (height x width) of 16.10 x 14.50 mm. This means it is compatible with 45x45 socket adapters, electrical fixture frames, modular panels and many other types of adapters, making it extremely versatile. The LAN receptacle has an IDC connector cover and color-coded connection sequence marking type 568A/B. Universal slot connectors compatible with LSA tool.


• Connector:
external: 1 x female RJ45 socket (8P/8C)
internal: LSA (tool-loss)
• CAT.6 specification
• Shielded (FTP)
• Compliant with Cat.6 requirements
EN 50173-1: 2011 and EN 60603-7-4 and ANSI / TIA 568-C.2
• Designed for stranded / solid wire or cabling up to 0.644 mm (22 - 26 AWG)
• PoE support in keystone: up to 57V
