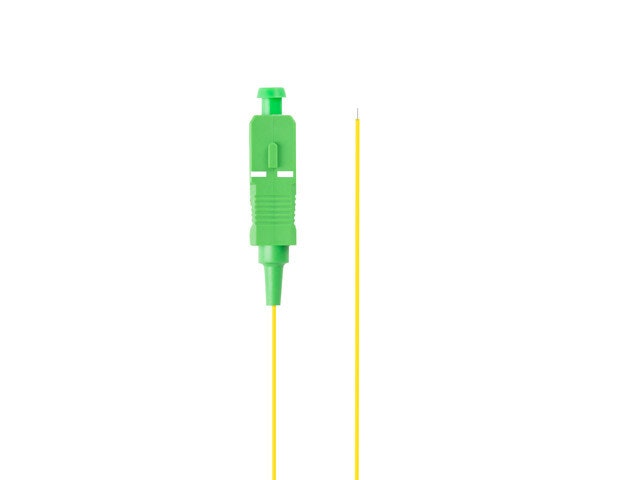

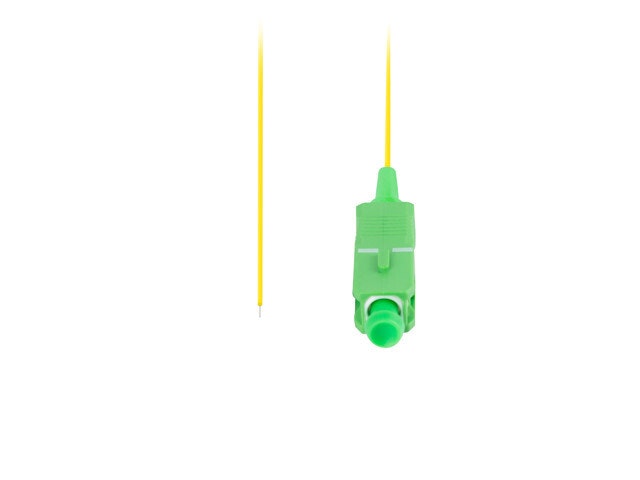

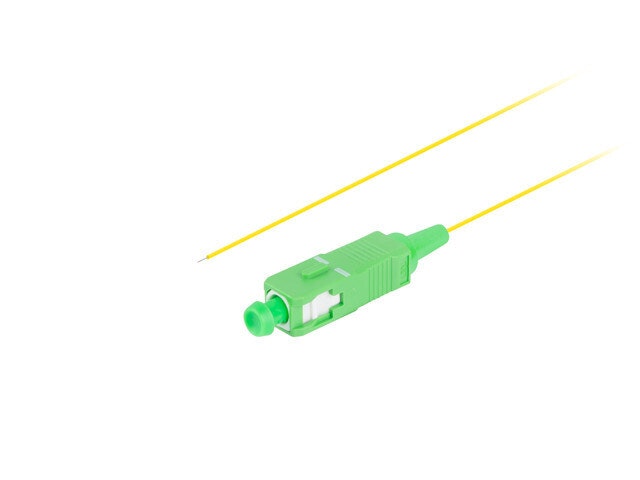

PIGTAIL FIBEROPTISK SM SC/APC ST 9/125 G657A1 2M GUL LANBERG

Fiber optic pigtail SM OS2 with SC/APC connector, 2m in length and 0.9mm in diameter.

SingleMode (SingleMode) pigtail with a fiber diameter of 9/125, terminated with a connector with APC (Angled Physical Contact) polishing standard and made of LSZH (Low Smoke Zero Halogen) coating. The pigtail uses G657A1 fiber standard, Semi Tight pigtail construction design.

The pigtail is made in accordance with the current norms and standards.


Connector type: SC
Polishing standard: APC - ANGLED PHYSICAL CONTACT
Fiber type: G657A1
Type of optical fiber: single-mode (SM)
Fiber diameter: 9/125 µm
Cable Construction: SEMI TIGHT
Cable diameter: 0.9 mm
Coating: LSZH
Insertion loss: < 0,20 dB
Return loss: > 60 dB
Operating temperature: -40 – 85 °C
Minimum bend radius: 10 mm
Color: Yellow
Cable length: 2m
