PIGTAIL FIBEROPTISK SM SC/UPC EASY STRIP 9/125 G657A1 12X2M FLERFÄRGAD LANBERG

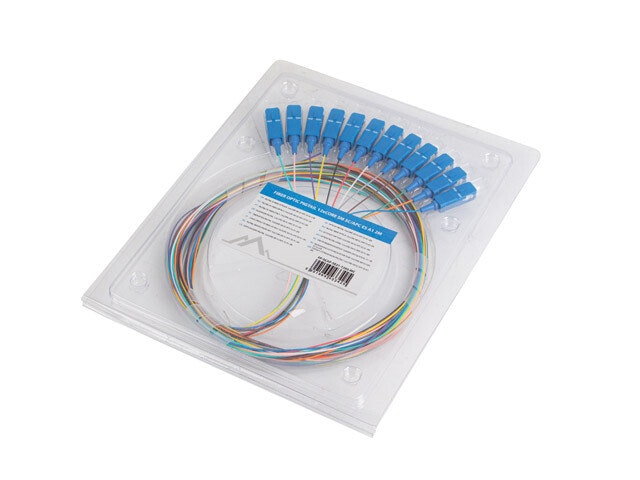

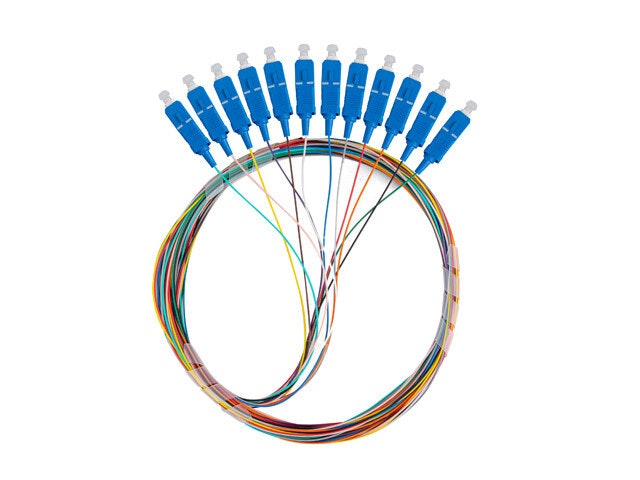

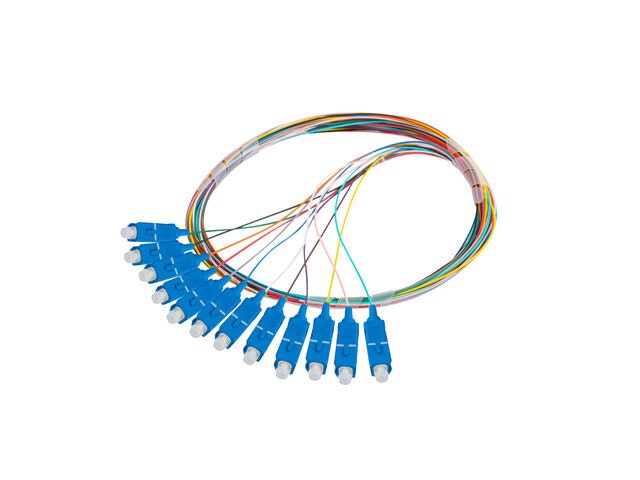

Set of 12 SM OS2 fiber optic pigtails with SC/UPC connectors, 2m in length and 0.9mm in diameter.

Single-mode (SingleMode) pigtails with a fiber diameter of 9/125, terminated with a connector with UPC (Ultra Physical Contact) polishing standard and made of LSZH (Low Smoke Zero Halogen) coating. The pigtails use G657A1 fiber standard, Easy Strip pigtail construction design.

Pigtails of high quality and repeatability of transmission parameters, in accordance with current norms and standards.


Connector type: SC
Polishing standard: UPC - ULTRA PHYSICAL CONTACT
Fiber type: G657A1
Type of optical fiber: single-mode (SM)
Fiber diameter: 9/125 µm
Cable Construction: EASY STRIP
Cable diameter: 0.9 mm
Coating: LSZH
Insertion loss: < 0,20 dB
Return loss: > 60 dB
Operating temperature: -40 – 85 °C
Minimum bend radius: 10 mm
Color: Multicolour
Cable length: 2m
